CICSA segmented plain wheels are suitable for a wide range of bucket elevators and conveyors

Segmented plain wheels for bucket elevators with chain ends DIN 764 and chain ends DIN 766 and chain shackles DIN 5699 and  chain shackles DIN 745, or chain CICSA chains LH with special bucket attachments ATS or scraper lateral attachments ALH and BLH.

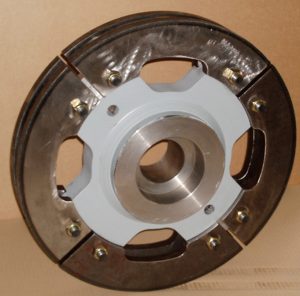

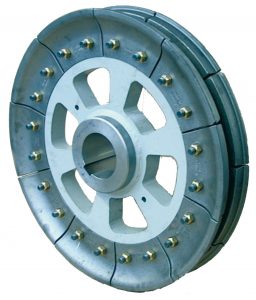

CICSA segmented plain wheelsCICSA segmented plain wheels for bucket elevators



Replaceable flat segments made of C45 steel with induction hardening, highly resistant to wear. Steel hub in welded steel fabrication with cleaning slots for material discharge.

Bored and keyed according to the customer’s request for shaft fixing with keyway or locking devices.

Attachments
