CICSA chain shackles DIN 5699 are used with chain ends DIN 764 or chain ends DIN 766

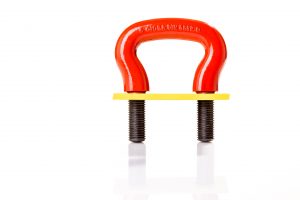

Chain shackles DIN 5699 connect bucket attachments with chain ends DIN 764 or chain ends DIN 766. Buckets are attached at a larger distance from the chain compared to chain shackles DIN 745. The threaded shanks are long enough to fit the distance plate with a nut and a counter nut for a safe locking of the shackle.

Manufactured to the highest quality standards and reinforced, chain shackles DIN 5699 grant better operating safety results, breaking and fatigue resistance compared to chain shackles DIN 745.

The main characteristics of chain shackles DIN 5699 are:

CICSA chain shackles DIN 5699

  • Forged with C45 or alloyed steel for the  type 2H, and with CrMo or NiCrMo alloy steel for the types 3H, 3HX and S3/S4, entirely quenched up to a material tensile strength of 1000 N/mm2 (2H) – 1200 N/mm2 (3H, 3HS, 3HX and S3/S4,C-Hard®);
  • Highly wear resistant thanks to a special hardening process at the interlink point of contact with the chain (induction hardening); CICSA patented special treatment in the quality C-Hard®, which provides top hardness in the interlink points of contact with the chain together with maximum tensile strength;
  • Carefully tested to check its surface quality;

Heat treatments are selected to strengthen the fatigue resistance of the pieces; proof and breaking forces with closed chain shackle DIN 745 are equal or exceeding those of the largest chain with which they can be matched. (for more information, see the table on the catalog page attached).
